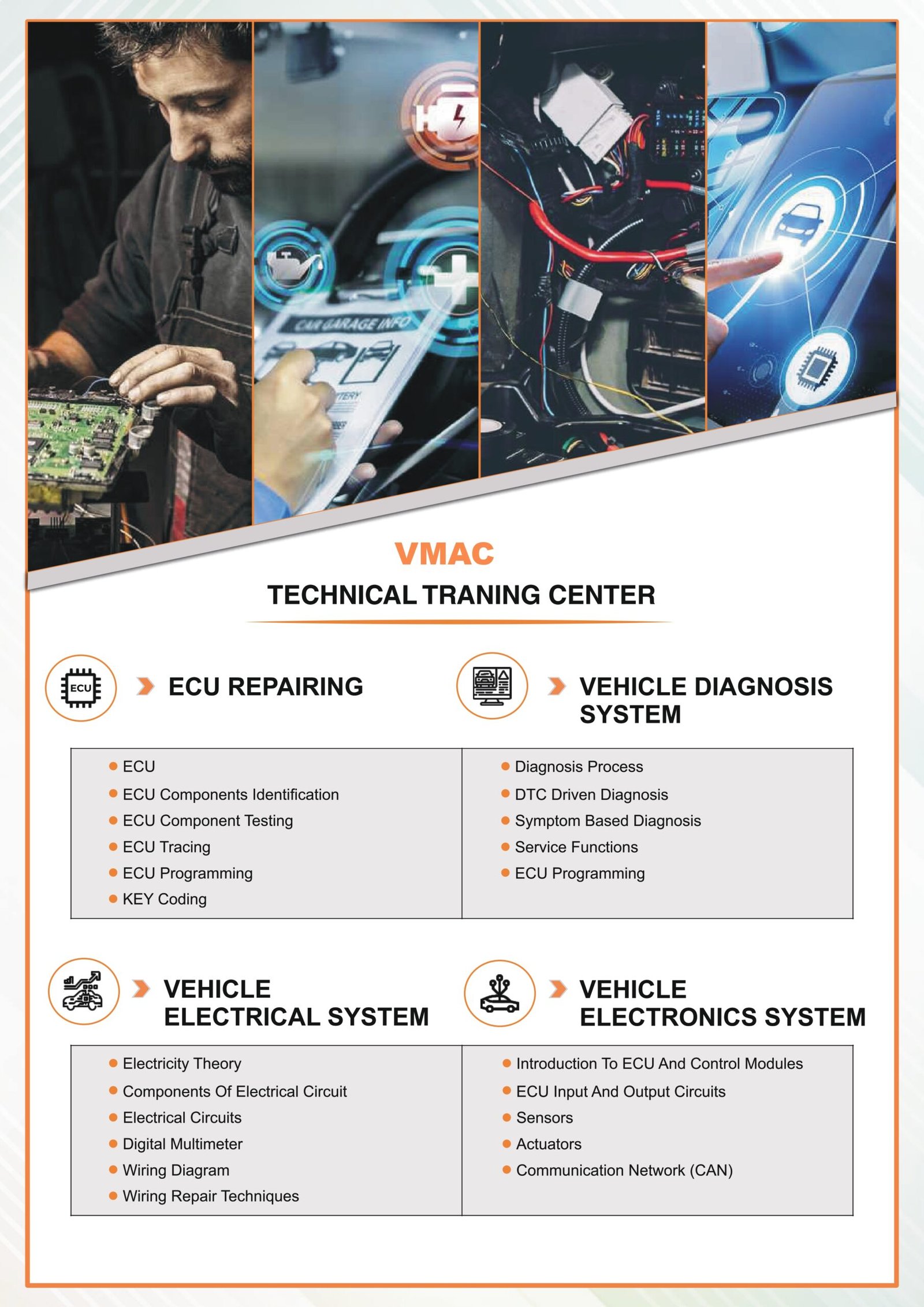

TECHNICAL TRAINING CENTRE
ECU repairing
- ECU
- ECU Components Identification
- ECU Component Testing
- ECU Tracing
- ECU Programming
- KEY Coding
VEHICLE DIAGNOSIS SYSTEM
- Diagnosis Process
- DTC Driven Diagnosis
- Symptom Based Diagnosis
- Service Functions
- ECU Programming
VEHICLE ELECTRICAL SYSTEM
- Electricity Theory
- Components of Electrical Circuit
- Electrical Circuits
- Digital Multimeter
- Wiring Diagram
- Wiring Repair Techniques

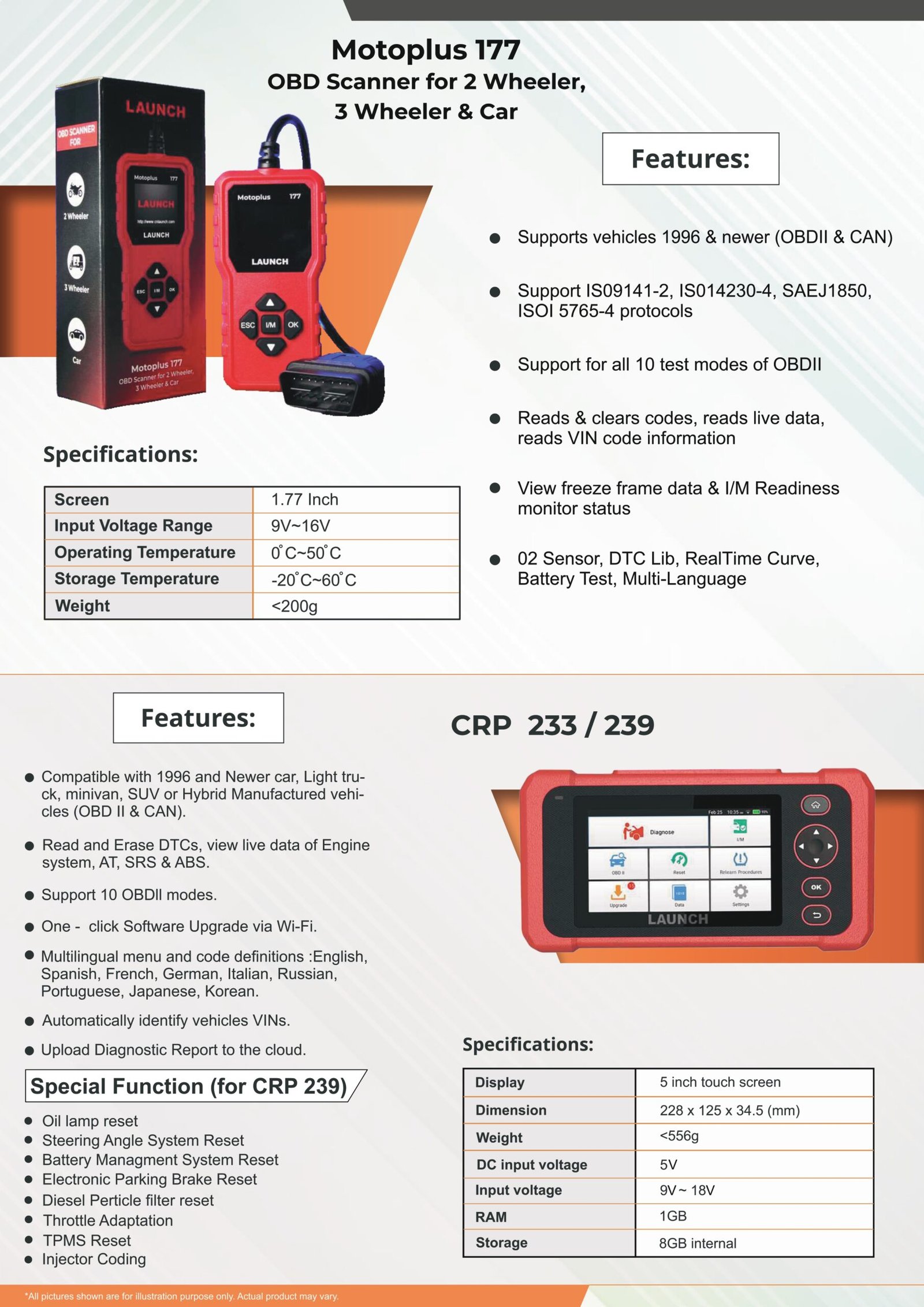

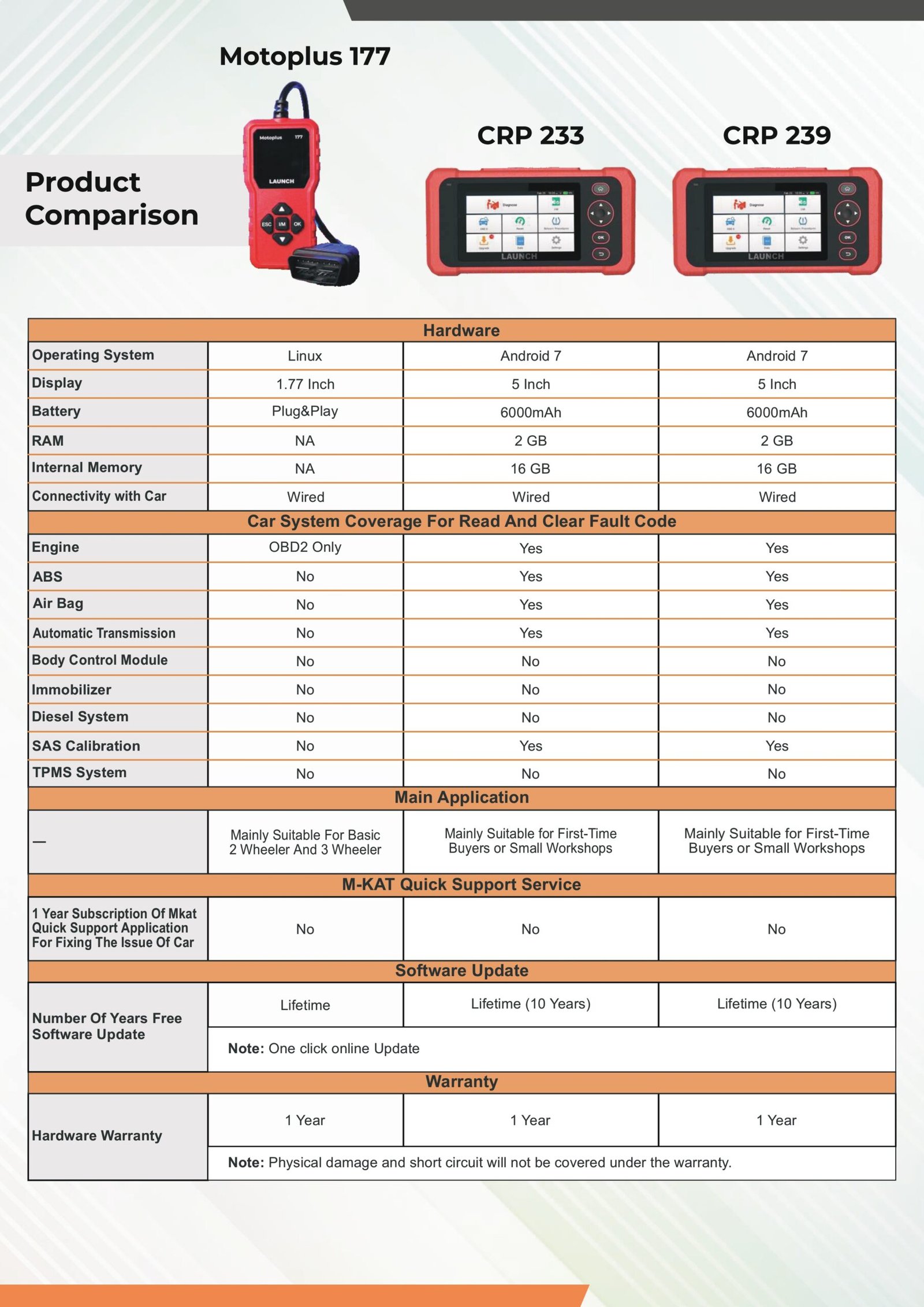

Motoplus 177 OBD Scanner for 2 Wheeler, 3 Wheeler & Car
Features:
- Supports vehicles 1996 & newer (OBDII & CAN)
- Support ISO9141-2, ISO14230-4, SAEJ1850, ISO15765-4 protocols
- Support for all 10 test modes of OBDII
- Reads & clears codes, reads live data, reads VIN code information
- View freeze frame data & I/M Readiness monitor status
- O2 Sensor, DTC Library, Real-Time Curve, Battery Test, Multi-Language
Specifications:
| Specification | Details |
|---|---|
| Screen | 1.77 Inch |
| Input Voltage Range | 9V ~ 16V |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
| Weight | < 200g |
Motoplus 177 OBD Scanner for 2 Wheeler, 3 Wheeler & Car
Features:
- Supports vehicles 1996 & newer (OBDII & CAN)
- Support ISO9141-2, ISO14230-4, SAEJ1850, ISO15765-4 protocols
- Support for all 10 test modes of OBDII
- Reads & clears codes, reads live data, reads VIN code information
- View freeze frame data & I/M Readiness monitor status
- O2 Sensor, DTC Library, Real-Time Curve, Battery Test, Multi-Language
Specifications:
| Specification | Details |
|---|---|
| Screen | 1.77 Inch |
| Input Voltage Range | 9V ~ 16V |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
| Weight | < 200g |

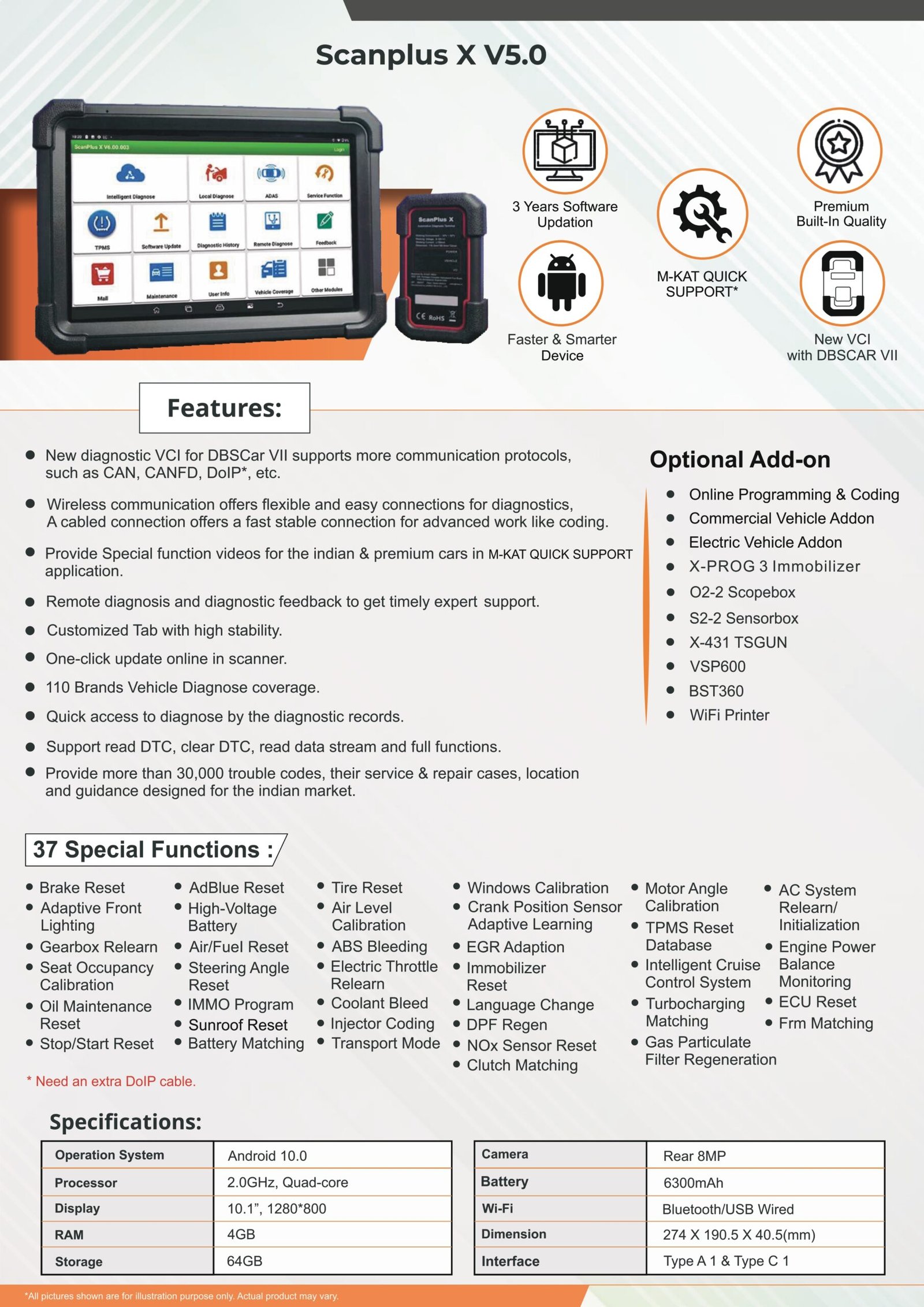

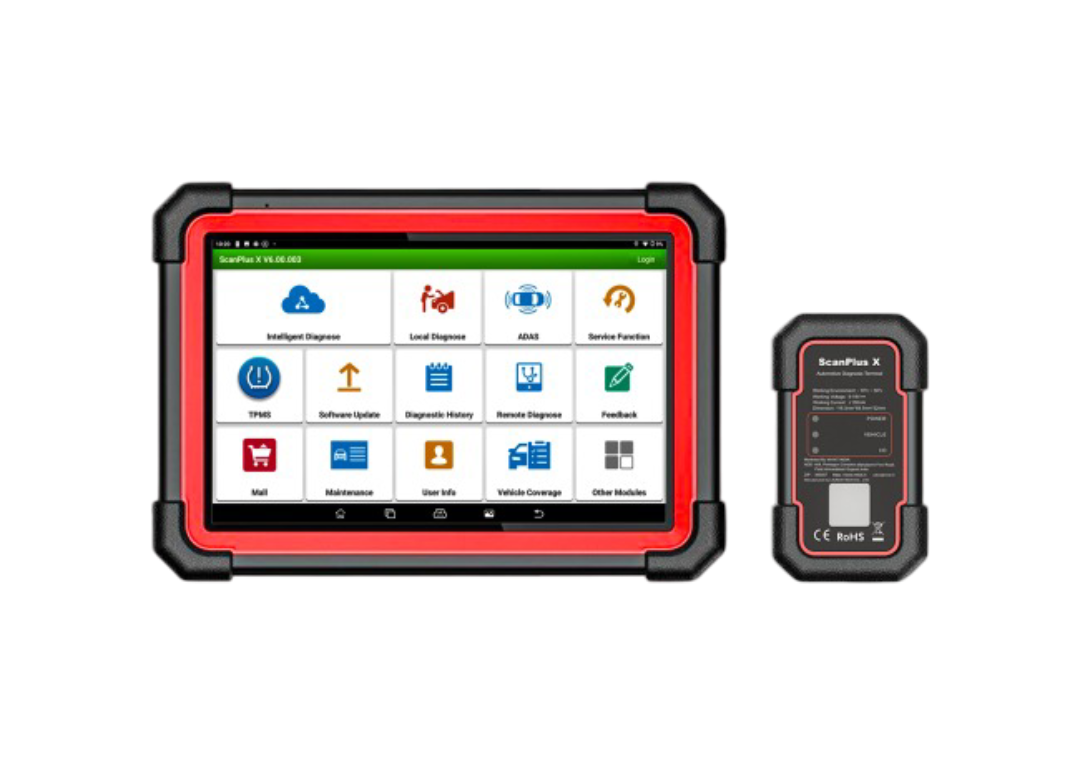

Scanplus X V5.0 – Advanced Vehicle Diagnostic Scanner
Scanplus X V5.0 is a next-generation intelligent vehicle diagnostic tool designed for fast, accurate, and comprehensive diagnostics across passenger and premium vehicles. Powered by Android 10.0 and equipped with a new high-performance DBSCar VII VCI, it delivers stable communication, advanced coding capabilities, and extensive special functions tailored for the Indian market.
Key Highlights
- 3 Years Free Software Updates
- Faster & Smarter Android-Based Device
- M-KAT Quick Support for Indian & Premium Cars
- Premium Built-In Hardware Quality
- New DBSCar VII VCI with Enhanced Protocol Support
Core Features
- New diagnostic DBSCar VII VCI supporting advanced protocols such as CAN, CAN-FD, DoIP, and more.
- Wireless connectivity for easy diagnostics and wired connection for stable advanced coding operations.
- Special function video guidance for Indian and premium vehicles via M-KAT Quick Support.
- Remote diagnosis & expert feedback for faster troubleshooting.
- Customized, high-stability Android tablet interface.
- One-click online software updates directly from the scanner.
- Coverage for 110+ vehicle brands.
- Quick access to vehicle diagnostic history and records.
- Supports Read DTC, Clear DTC, Live Data Stream, and Full System Diagnostics.
- Database of 30,000+ trouble codes with service cases, repair guidance, and fault locations customized for the Indian market.

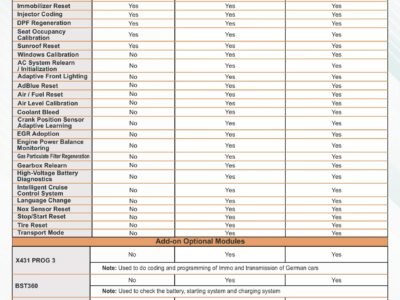

37 Special Functions
- Brake Reset
- Oil Maintenance Reset
- Stop/Start Reset
- Adaptive Front Lighting
- Gearbox Relearn
- Seat Occupancy Calibration
- AdBlue Reset
- High-Voltage Battery
- Air/Fuel Reset
- Sunroof Reset
- Battery Matching
- Tire Reset
- Air Level Calibration
- ABS Bleeding
- Electric Throttle Relearn
- Coolant Bleed
- Injector Coding
- Transport Mode
- Windows Calibration
- Crank Position Sensor Adaptive Learning
- EGR Adaptation
Specifications:
| Specification | Details |
|---|---|
| Display | 5 inch touch screen |
| Dimension | 228 × 125 × 34.5 (mm) |
| Weight | < 556g |
| DC Input Voltage | 5V |
| Input Voltage | 9V ~ 18V |
| RAM | 1GB |
| Storage | 8GB internal |

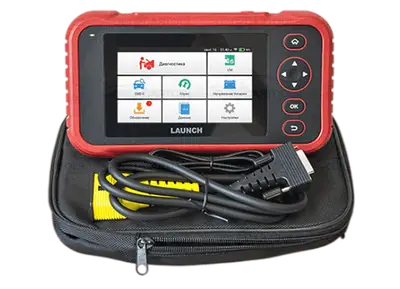

CRP 233 / 239
Features:
- Compatible with 1996 and newer cars, light truck, minivan, SUV or Hybrid manufactured vehicles (OBD II & CAN)
- Read and erase DTCs, view live data of Engine system, AT, SRS & ABS
- Support 10 OBDII modes
- One-click software upgrade via Wi-Fi
- Multilingual menu and code definitions: English, Spanish, French, German, Italian, Russian, Portuguese, Japanese, Korean
- Automatically identify vehicle VINs
- Upload diagnostic report to the cloud
Special Function (for CRP 239):
- Oil Lamp Reset
- Steering Angle System Reset
- Battery Management System Reset
- Electronic Parking Brake Reset
- Diesel Particle Filter Reset
- Throttle Adaptation
- TPMS Reset
- Injector Coding
CRP 233 / 239
Features:
- Compatible with 1996 and newer cars, light truck, minivan, SUV or Hybrid manufactured vehicles (OBD II & CAN)
- Read and erase DTCs, view live data of Engine system, AT, SRS & ABS
- Support 10 OBDII modes
- One-click software upgrade via Wi-Fi
- Multilingual menu and code definitions: English, Spanish, French, German, Italian, Russian, Portuguese, Japanese, Korean
- Automatically identify vehicle VINs
- Upload diagnostic report to the cloud
Special Function (for CRP 239):
- Oil Lamp Reset
- Steering Angle System Reset
- Battery Management System Reset
- Electronic Parking Brake Reset
- Diesel Particle Filter Reset
- Throttle Adaptation
- TPMS Reset
- Injector Coding
Specifications:
| Specification | Details |
|---|---|
| Display | 5 inch touch screen |
| Dimension | 228 × 125 × 34.5 (mm) |
| Weight | < 556g |
| DC Input Voltage | 5V |
| Input Voltage | 9V ~ 18V |
| RAM | 1GB |
| Storage | 8GB internal |
Technical Specifications
- Operating System: Android 8.1
- Display: 5″ Touch Screen, 720P
- Battery: 6000mAh
- DC Input Voltage: DC 5V
- Communication: Wi-Fi 2.4GHz (b/g/n)
- Storage: 2GB RAM + 32GB ROM
- Working Temperature: 0°C to 45°C
- Storage Temperature: -20°C to 70°C
- Dimensions: 211.5 × 99 × 34.5 mm
- Weight: < 650 g

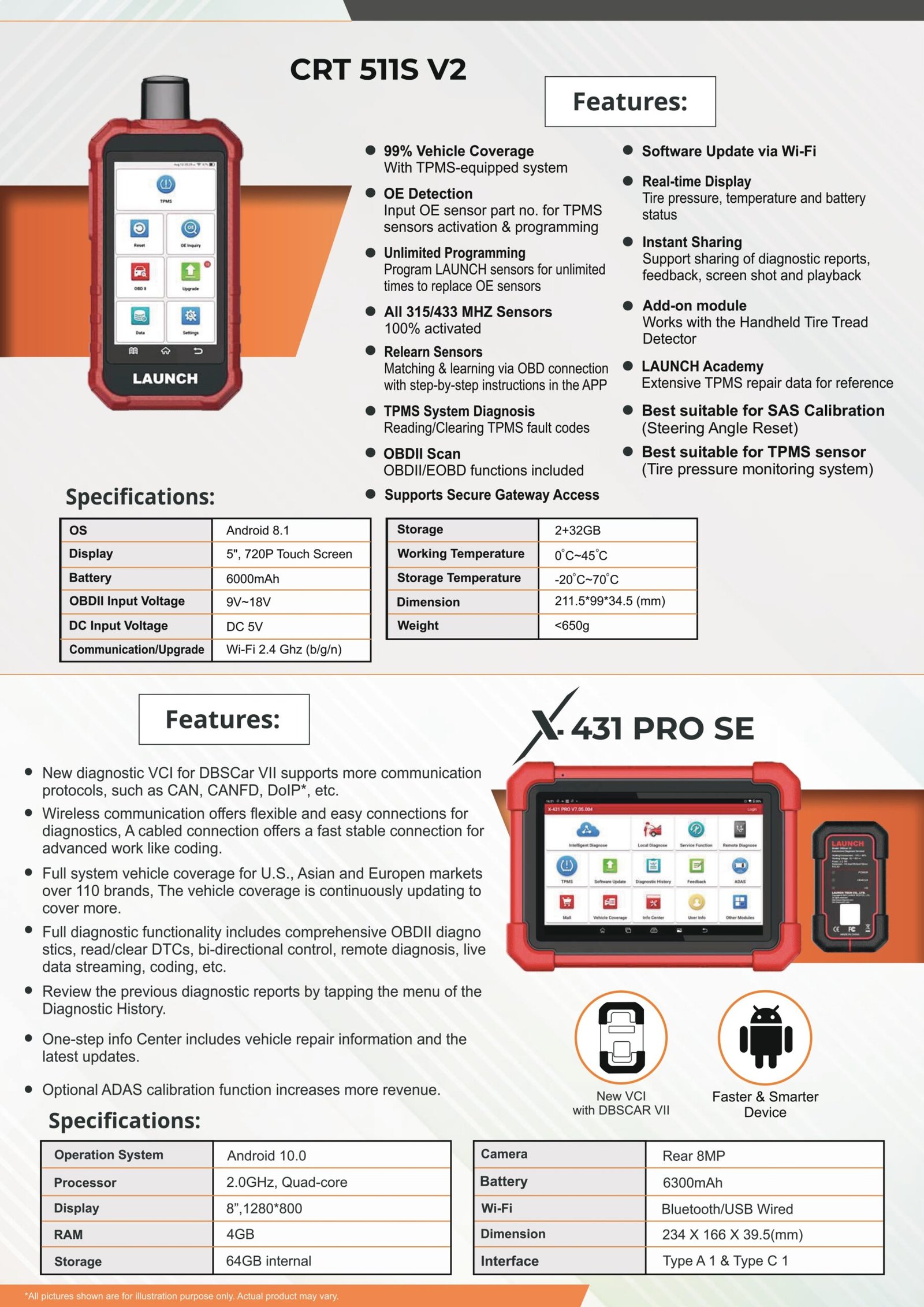

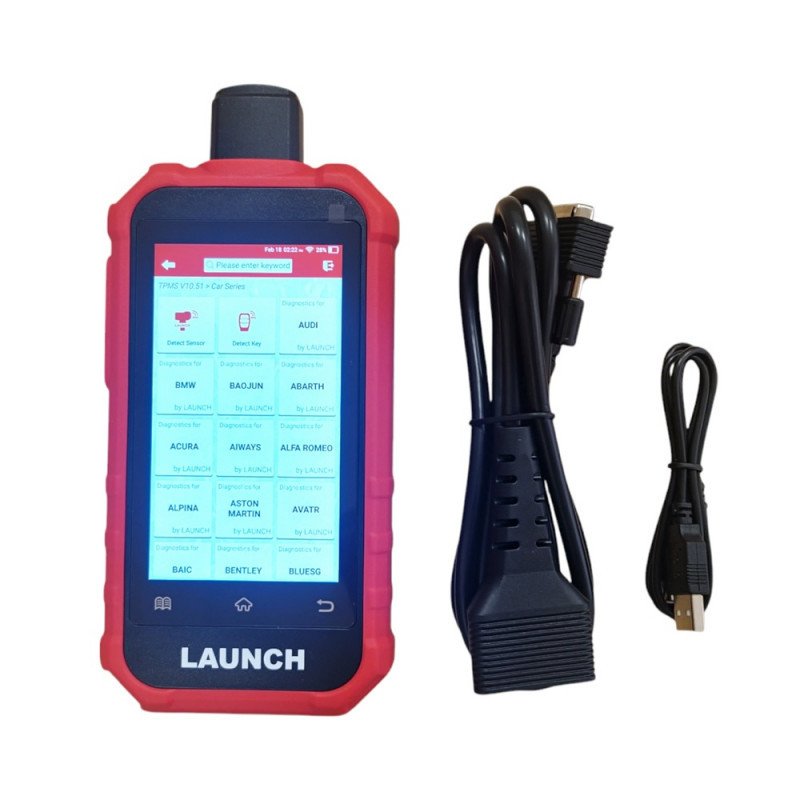

CRT 511S V2 – TPMS Diagnostic Tool
The LAUNCH CRT 511S V2 is a compact and powerful TPMS diagnostic and programming tool designed for professional workshops and service centers. It delivers extensive vehicle coverage, accurate TPMS diagnostics, and easy sensor programming with a user-friendly Android-based interface.
Key Features
- 99% Vehicle Coverage with TPMS-equipped systems
- OE Detection
Automatically detects OE sensor part numbers for TPMS activation and programming - Unlimited Sensor Programming
Program LAUNCH sensors multiple times to replace OE sensors - 315MHz & 433MHz Sensor Support
All frequencies fully activated - Sensor Relearn Function
Step-by-step relearn and matching via OBD connection using the APP - TPMS System Diagnosis
Read and clear TPMS fault codes quickly - OBDII/EOBD Scan
Supports full OBDII diagnostic functions - Secure Gateway Access Supported
- Software Updates via Wi-Fi
- Real-Time Display
Displays tire pressure, temperature, and battery status - Instant Sharing
Share diagnostic reports, screenshots, and playback easily - Add-on Module Compatibility
Works with handheld tire tread detectors - LAUNCH Academy Access
Built-in TPMS repair data and learning resources - Ideal for SAS Calibration
(Steering Angle Sensor Reset) - Best Suited for TPMS Sensor Services

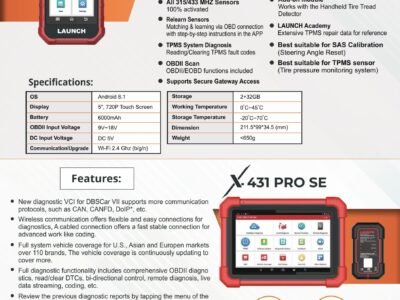

X-431 PRO SE – Advanced Diagnostic Scanner
The LAUNCH X-431 PRO SE is a high-performance, full-system diagnostic tool designed for advanced automotive diagnostics, coding, and programming. Equipped with the DBSCar VII VCI, it supports modern communication protocols and delivers fast, stable, and reliable diagnostics for global vehicle brands.
Key Features
- New DBSCar VII VCI
Supports CAN, CANFD, DoIP*, and advanced communication protocols - Wireless & Wired Communication
Wireless diagnostics for convenience; wired connection for stable advanced coding - Extensive Vehicle Coverage
Covers U.S., Asian, and European vehicles with over 110 brands - Full System Diagnostics
Read/clear DTCs, bi-directional control, live data streaming, coding, and remote diagnosis - Diagnostic History Review
Easily review previous reports via the history menu - One-Step Info Center
Access vehicle repair information and latest software updates - Optional ADAS Calibration
Expand services and increase workshop revenue - Faster & Smarter Performance
Enhanced processing speed with Android platform
Technical Specifications
- Operating System: Android 10.0
- Processor: 2.0GHz Quad-Core
- Display: 8″ Touch Screen, 1280 × 800
- RAM: 4GB
- Internal Storage: 64GB
- Camera: Rear 8MP
- Battery: 6300mAh
- Connectivity: Bluetooth / USB (Wired)
- Interface: USB Type-A ×1, Type-C ×1
- Dimensions: 234 × 166 × 39.5 mm
Key Features
- 3 Years Free Software Updates
- Premium Build Quality
- Faster & Smarter Android Device
- M-KAT Quick Support
- New DBSCAR VII VCI Module

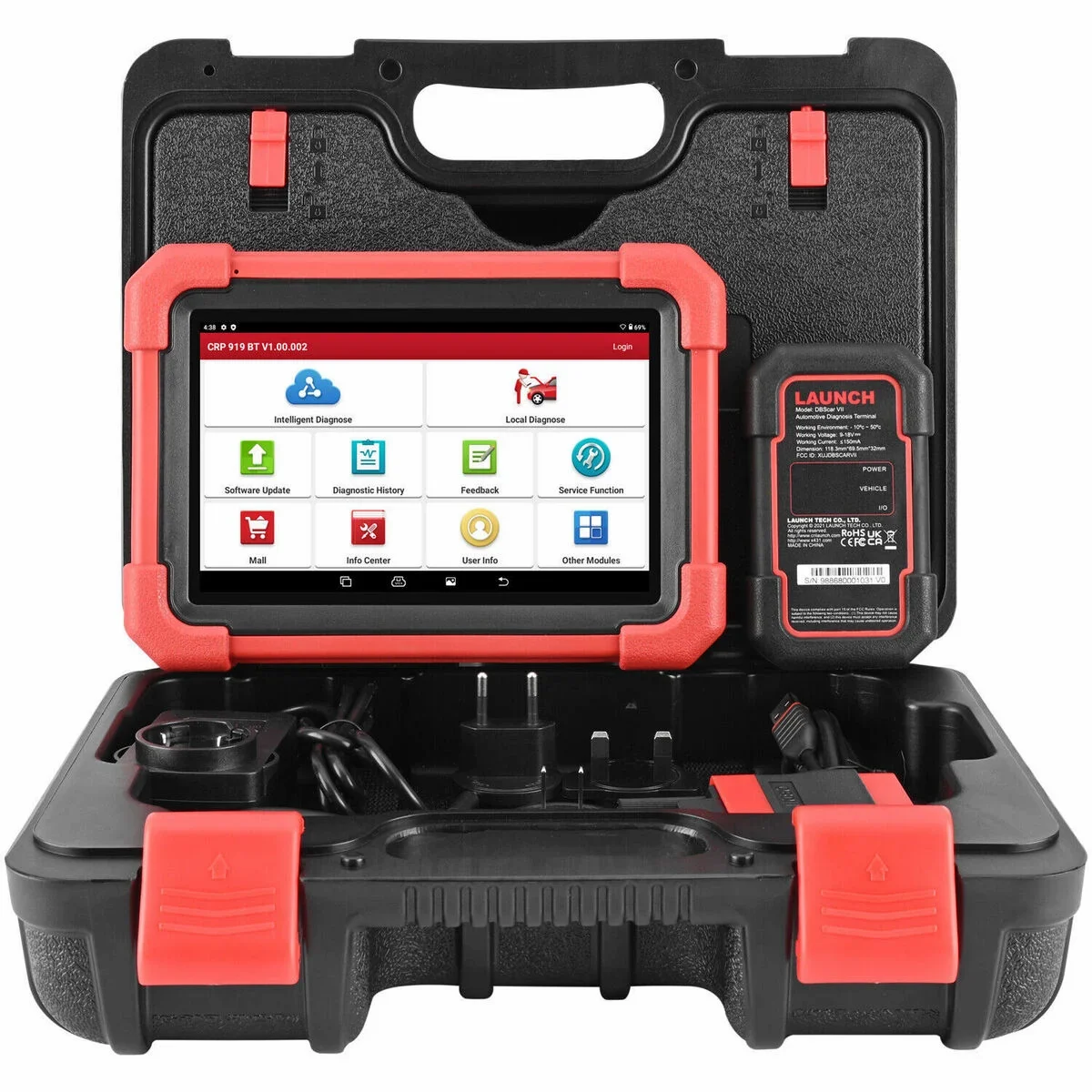

LAUNCH 919 MAX
The LAUNCH 919 MAX is a powerful, wireless OE-level diagnostic tool engineered for modern workshops and service centers. Equipped with the DBSCAR VII VCI, it delivers fast diagnostics, advanced service functions, intelligent vehicle identification, and wide vehicle coverage across Asian, American, and European markets.
Technical Specifications
- Wireless OE-Level Diagnostics
Provides flexible and easy wireless connection with vehicles for efficient diagnostics. - Advanced Service Functions
Includes IMMO reset & programming, SAS reset, DPF regeneration, AdBlue reset, injector coding, oil lamp reset, and more for daily workshop operations. - TPMS Compatibility
Works with X-431 TSGUN to diagnose TPMS faults and program new TPMS sensors. - Intelligent Diagnostics
Automatic VIN identification instantly detects vehicle information and system details. - Full System Vehicle Coverage
Supports Asian, U.S., and European vehicles with functions such as: - Read/Clear DTCs
- Live data streaming
- Bi-directional control
- ECU coding and matching
- Guided Functions
Advanced guided diagnostics for VW and Audi vehicles. - Advanced Communication Protocols
Supports CAN, CANFD, and DoIP* protocols.
LAUNCH 919 MAX
The LAUNCH 919 MAX is a powerful, wireless OE-level diagnostic tool engineered for modern workshops and service centers. Equipped with the DBSCAR VII VCI, it delivers fast diagnostics, advanced service functions, intelligent vehicle identification, and wide vehicle coverage across Asian, American, and European markets.
Technical Specifications
- Wireless OE-Level Diagnostics
Provides flexible and easy wireless connection with vehicles for efficient diagnostics. - Advanced Service Functions
Includes IMMO reset & programming, SAS reset, DPF regeneration, AdBlue reset, injector coding, oil lamp reset, and more for daily workshop operations. - TPMS Compatibility
Works with X-431 TSGUN to diagnose TPMS faults and program new TPMS sensors. - Intelligent Diagnostics
Automatic VIN identification instantly detects vehicle information and system details. - Full System Vehicle Coverage
Supports Asian, U.S., and European vehicles with functions such as: - Read/Clear DTCs
- Live data streaming
- Bi-directional control
- ECU coding and matching
- Guided Functions
Advanced guided diagnostics for VW and Audi vehicles. - Advanced Communication Protocols
Supports CAN, CANFD, and DoIP* protocols.
Key Features
- 3 Years Free Software Updates
- Premium Build Quality
- Faster & Smarter Android Device
- M-KAT Quick Support
- New DBSCAR VII VCI Module
Key Features
- New SmartLink VCI
- M-KAT Quick Support
- SmartLink Remote Diagnosis
- IP65 Rated – Water & Dust Resistant
- Adjustable Kickstand
- Crash-Proof Corner Protection

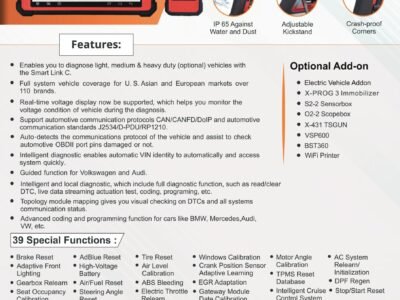

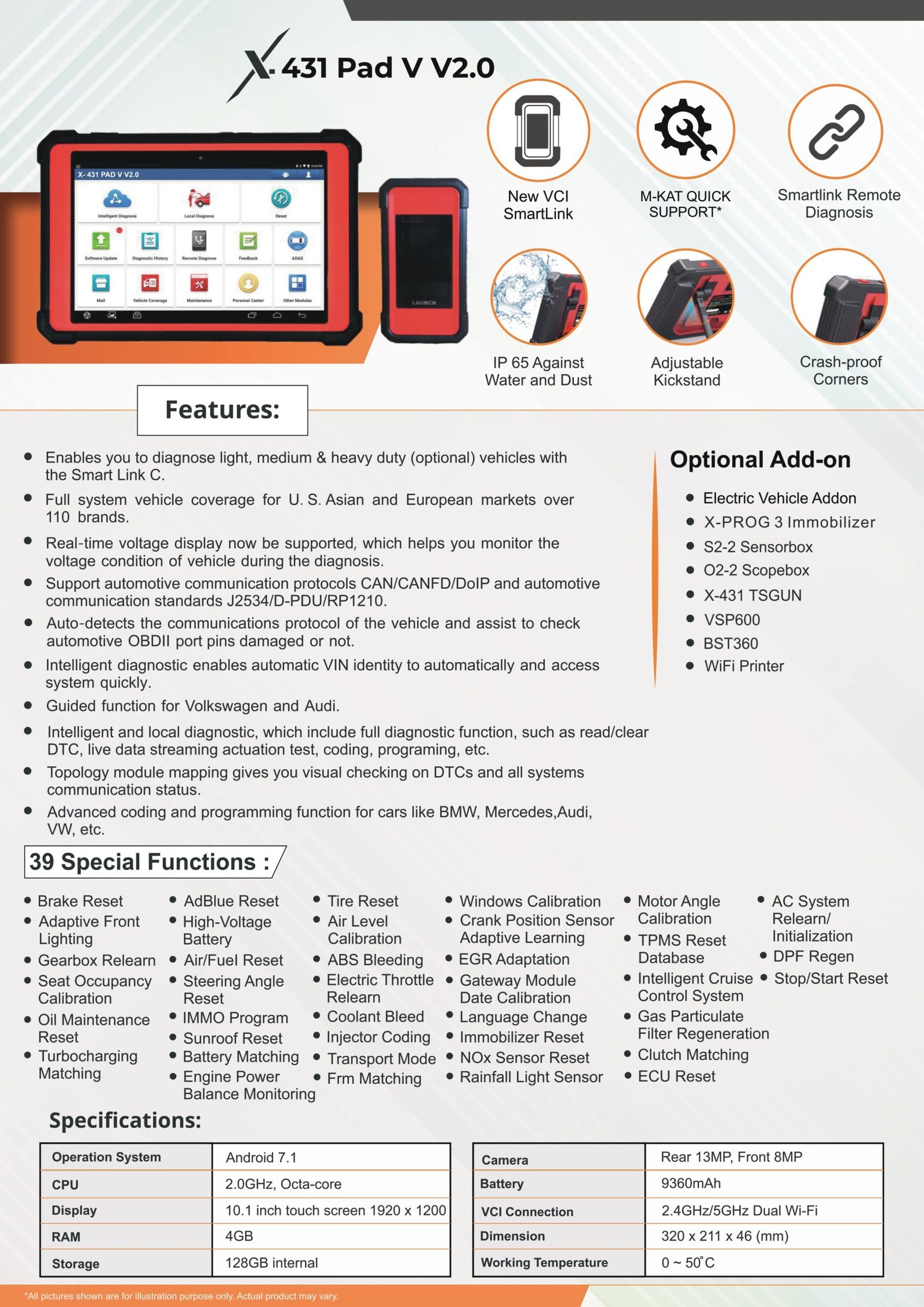

LAUNCH X-431 PAD V V2.0
The LAUNCH X-431 PAD V V2.0 is a high-end, professional diagnostic tablet designed for light, medium, and optional heavy-duty vehicles. Equipped with the SmartLink VCI, advanced coding & programming capabilities, and robust industrial design, it is ideal for multi-brand workshops, dealerships, and advanced diagnostic professionals.
Core Features
- Multi-Vehicle Diagnostics
Diagnose light, medium, and optional heavy-duty vehicles using SmartLink C. - Extensive Vehicle Coverage
Full system diagnostics for U.S., Asian, and European vehicles, covering 110+ brands. - Real-Time Voltage Monitoring
Displays live vehicle voltage status during diagnostics to ensure stable operation. - Advanced Communication Protocols
Supports CAN, CANFD, DoIP, and automotive standards J2534 / D-PDU / RP1210. - OBDII Port Health Detection
Automatically checks OBDII port pin status and detects damaged pins. - Intelligent VIN Identification
Auto-detects VIN and vehicle systems for faster diagnostics. - Guided Diagnostics
Step-by-step guided functions for Volkswagen and Audi vehicles.
Optional Add-On Modules
- Electric Vehicle Add-on

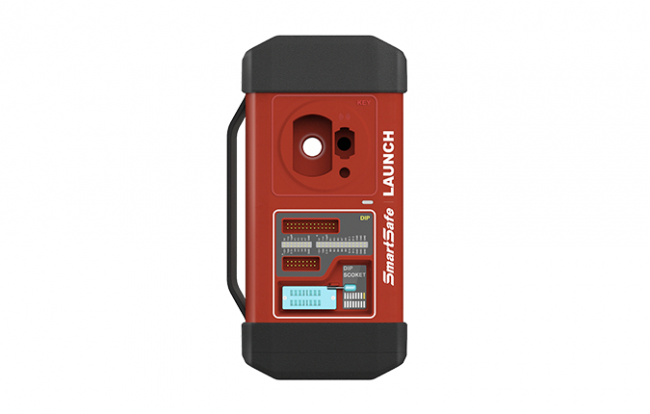

- X-PROG 3 Immobilizer
- S2-2 Sensorbox
- O2-2 Scopebox
- X-431 TSGUN

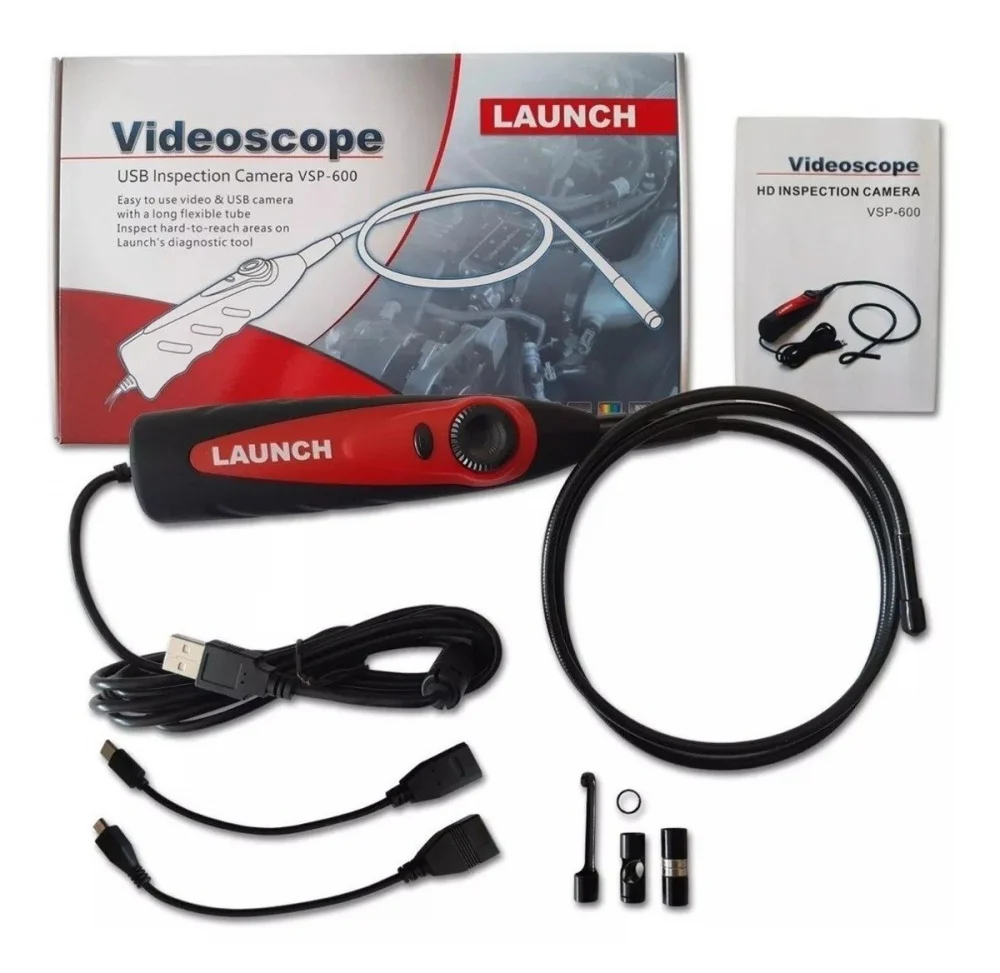

- VSP600
- BST360
- Wi-Fi Printer

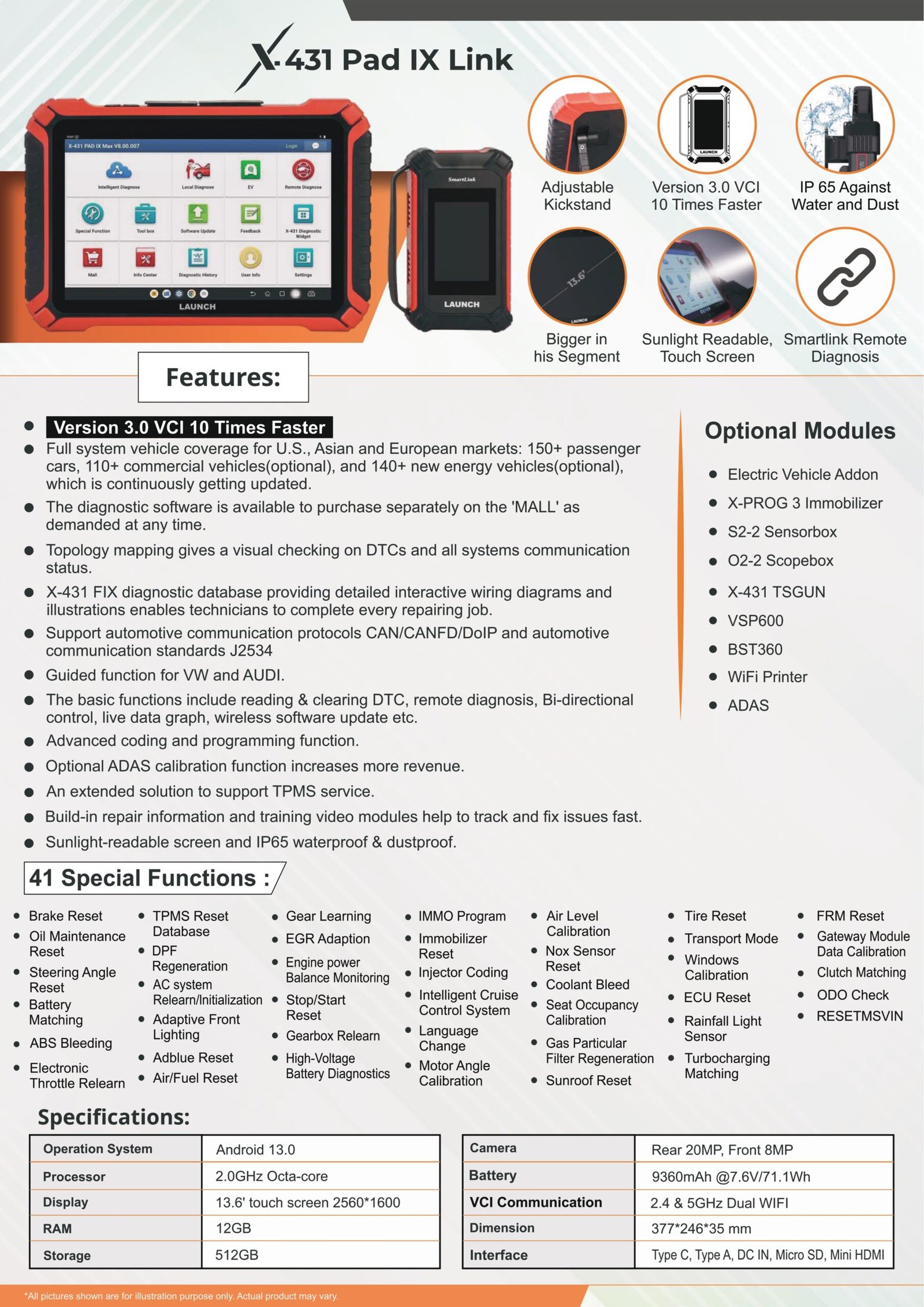

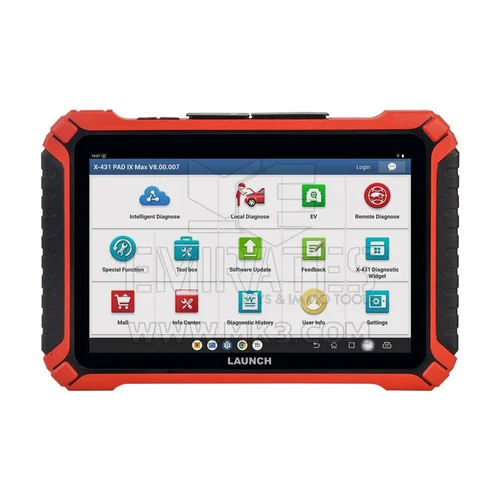

X-431 Pad IX Link
The X-431 Pad IX Link is a high-end automotive diagnostic tablet designed for professional workshops and service centers. Powered by Version 3.0 VCI, it delivers 10× faster communication speed, ensuring accurate and efficient vehicle diagnostics. With a sunlight-readable 13.6-inch touch screen, IP65-rated water and dust protection, and an adjustable kickstand, it is built for both performance and durability in demanding workshop environments.
This tool supports full-system diagnostics for U.S., Asian, and European vehicles, covering 150+ passenger cars, 110+ commercial vehicles (optional), and 140+ new energy vehicles (optional), with continuous software updates. Advanced features such as topology mapping, bi-directional control, guided functions for VW and Audi, and remote diagnosis via SmartLink make it a complete diagnostic solution.
Specifications
- Operating System: Android 13.0
- Processor: 2.0GHz Octa-core
- Display: 13.6″ Touch Screen (2560 × 1600)
- RAM / Storage: 12GB / 512GB
- Camera: Rear 20MP, Front 8MP
- Battery: 9360mAh @ 7.6V (71.1Wh)
- VCI Communication: 2.4 & 5GHz Dual Wi-Fi
- Dimensions: 377 × 246 × 35 mm
- Interfaces: Type-C, Type-A, DC-IN, Micro SD, Mini HDMI

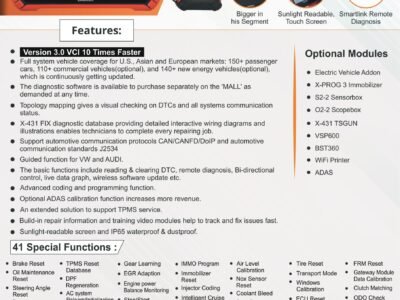

Key Features
- Version 3.0 VCI – 10× faster diagnostics
- Full system vehicle coverage with continuous updates
- Topology mapping for visual system communication status
- Bi-directional control, live data, and ECU coding
- Advanced programming and guided diagnostic functions
- Built-in repair information and training videos
- Optional ADAS and TPMS support
- Sunlight-readable screen with IP65 protection
Key Features
- Deep ultrasonic injector cleaning
- Automatic testing with real-time monitoring
- Non-dismantle cleaning adapters
- Simulated operating condition testing
- One-key manual oil discharge

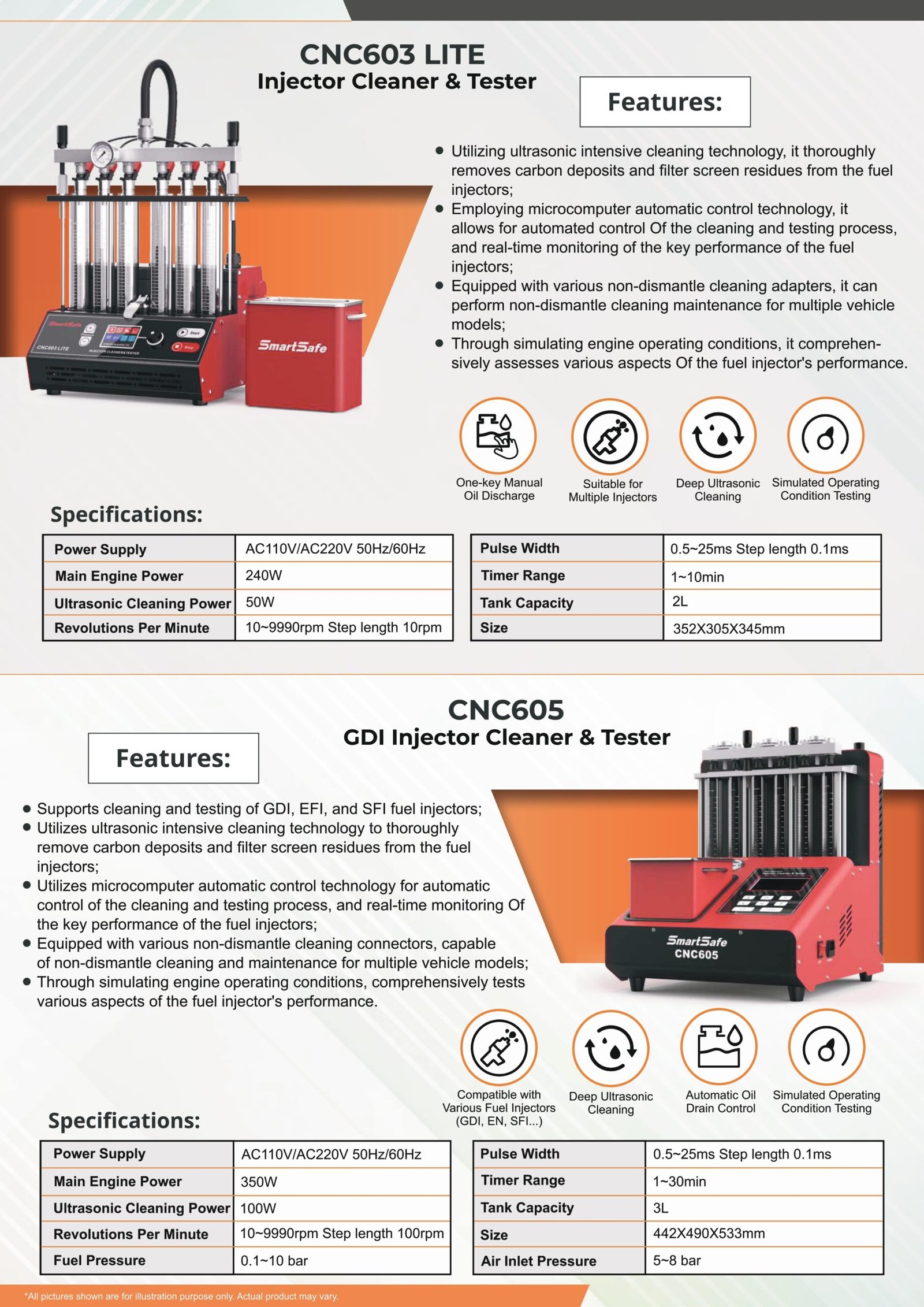

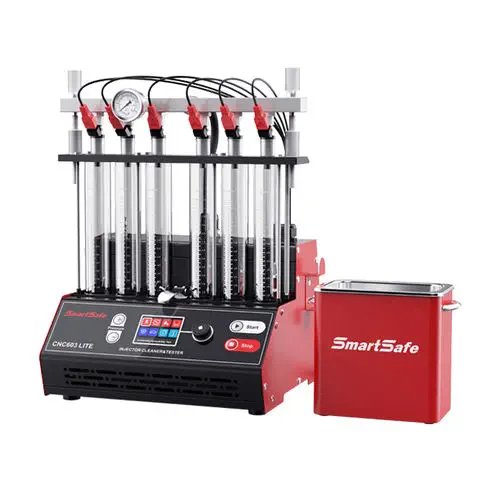

CNC603 LITE
The CNC603 LITE Injector Cleaner & Tester is a compact and reliable solution for testing and cleaning fuel injectors using ultrasonic intensive cleaning technology. It effectively removes carbon deposits and filter residues while simulating real engine operating conditions to evaluate injector performance.
Equipped with microcomputer automatic control, it supports non-dismantle cleaning and is compatible with multiple injector types, making it ideal for small and mid-sized workshops.
Specifications
- Power Supply: AC110V / AC220V, 50Hz / 60Hz
- Main Engine Power: 240W
- Ultrasonic Power: 50W
- RPM Range: 10–9990 rpm
- Pulse Width: 0.5–25 ms
- Timer Range: 1–10 min
- Tank Capacity: 2L
- Size: 352 × 305 × 345 mm
AC 519 – A/C Service Station
The AC 519 A/C Service Station is an intelligent and fully automatic air-conditioning service solution for modern automotive workshops. Designed for efficient recovery, recycling, cleaning, vacuuming, and refilling, it supports both R134a and R1234YF refrigerants, eliminating manual setup through its built-in vehicle database.
With forward, reverse, and pulse cleaning modes, the AC 519 ensures thorough pipeline cleaning, improved compressor lubrication, and enhanced cooling efficiency. The integrated printer allows easy documentation of work hours and material usage.
Specifications
- Operating System: Android 13.0
- Processor: 2.0GHz Octa-core
- Display: 13.6″ Touch Screen (2560 × 1600)
- RAM / Storage: 12GB / 512GB
- Camera: Rear 20MP, Front 8MP
- Battery: 9360mAh @ 7.6V (71.1Wh)
- VCI Communication: 2.4 & 5GHz Dual Wi-Fi
- Dimensions: 377 × 246 × 35 mm
- Interfaces: Type-C, Type-A, DC-IN, Micro SD, Mini HDMI
Specifications
- Power Supply: AC110V / AC220V, 50Hz / 60Hz
- Main Engine Power: 700W
- Compressor: 12.2cm³
- Vacuum Pump: 42L/min (220V), 50L/min (110V)
- Tank Capacity: 12L
- HP / LP Gauge: −1 to 35 bar / −1 to 20 bar
- Working Temperature: 0–50°C
Key Features
- Automatic recovery and reuse of refrigerants
- Intelligent precision refilling with electronic scale
- Complete A/C system cleaning
- Built-in printer for work and material reports
- One-button automatic operation or manual control
Functions
- A/C system cleaning
- Refrigerant recovery and recycling
- Vacuuming of pipelines
- Refrigeration oil refilling (manual & automatic)
- Refrigerant refilling as per set quantity
Key Features
- Supports GDI, EFI, and SFI injectors
- High-intensity ultrasonic cleaning
- Automatic testing and monitoring
- Non-dismantle cleaning connectors
- Simulated engine condition testing
CNC605 – GDI Injector Cleaner & Tester
The CNC605 is a powerful injector cleaning and testing system specifically designed for GDI, EFI, and SFI fuel injectors. It combines high-power ultrasonic cleaning with precise testing capabilities to ensure optimal injector performance under simulated engine conditions.
With automatic oil drain control and compatibility with multiple injector types, the CNC605 is ideal for advanced diagnostic and fuel system maintenance applications.
Specifications
- Power Supply: AC110V / AC220V, 50Hz / 60Hz
- Main Engine Power: 350W
- Ultrasonic Power: 100W
- RPM Range: 10–9990 rpm
- Fuel Pressure: 0.1–10 bar
- Pulse Width: 0.5–25 ms
- Timer Range: 1–30 min
- Tank Capacity: 3L
- Air Inlet Pressure: 5–8 bar
- Size: 442 × 490 × 533 mm
PROG-3
The CNC605 is a powerful injector cleaning and testing system specifically designed for GDI, EFI, and SFI fuel injectors. It combines high-power ultrasonic cleaning with precise testing capabilities to ensure optimal injector performance under simulated engine conditions.
With automatic oil drain control and compatibility with multiple injector types, the CNC605 is ideal for advanced diagnostic and fuel system maintenance applications.
Features
- EEPROM Read & Write
- Mercedes – Benz keys
- Enumeration All Keys Lost
- Read & Write keys
- Read BMW engine INS code
- Replace OBD reading component
- Read & Write BMW CAS4+ and FEM chip
- Read engine in boot mode
- Read & Write Audi fifth-generation
- VW Fourth – generation Dump
- Read engine in BENCH mode
- MCU Read Write
- Key simulator
- VW Fourth – generation
- Read gearbox data
- Steering column chips
Specification
Interface | Db26, DB15 |
Input Power | DC 12V |
Working CurrentMax | 500mA |
Power Consumtion | |
Storage Temperature | -20 C ~ 70 C |
Working Temperature | 0C ~ 50 C |
Size | 228 × 120 mm |
Jaltest DIAGNOSTICS FOR COMMERCIAL VEHICLE
Feature
- Jaltest supports, the Indian BS segment with multi-brand and multi-scanning, Equipped service functions like calibration,
ECU reset*, ad-blue reset, PRV reset, etc. - Jaltest device is fast, light weight, compact and also match
- IP40 protection level.
- Easy to handle provide step by step troubleshooting guide.
- Jaltest provided interactive wiring diagrams, system operation, and also technical data for all most all kind of commercial vehicle.
- Jaltest CV commercial vehicle is for LCVs, Trucks and Bus.
- Jaltest provides a wide range of vehicle diagnostics tools, supporting 5 different segments CV (Commercial vehicle), AGV (Agricultural), OHW (Off highway), MHE (Material handling), MARINE (Vessels).
- GRP (Garage Resource Planning), shop and customer/vehicle record management equipped with workshop management support
- GRP Jaltest basic.
3D Wheel (Alignment)
Features:
- High resolution imaging cameras.
- New generation digital imaging technology for data acquisition.
- Fully repairable / replaceable targets.
- Inbuilt vehicle body dimension measurement system.
- Pre-calibrated device for easy installation.
- User friendly interface.
Measurement Angles | Working Range | Precision |
|---|---|---|
Toe | -20° to +20° | ±0.02° |
Camber | -12° to +12° | ±0.02° |
Caster | -25° to +25° | ±0.02° |
SAI | -25° to +25° | ±0.02° |
Thrust Angle | -10° to +10° | ±0.02° |
Operating Voltage | 220V / 50 Hz AC | — |
Tyre Changer
Features:
- High quality and durable alumınum components for faster heat dissipa – tion low energy loss and high power.
- Foot pneumatic valve piston rod assembly – made of non-corrosive material.
- Built with robust frame and low cost of operation.
- With swing arm, suitable for passenger car wheels with rims from 12″ to 22″.
- Self-centering four jaw chuck and powerful bead
Specifications:
Max. tyre Diameter | 1200 mm |
Outside clamping | 11″ to 21″ |
Inside clamping | 12″ to 22″ |
Max. tyre Width | 330 mm |
Operating Pressure | 8 to 10 bar |
Motor | 1.1 HP |
Power | 220 v / 50 Hz |
Digital Wheel Balancer
Features:
- Rubber canvas belt used for longer life.
- Fastest cycle time in its range: 7 secs.
- Fully repairable parts.
- Superfast and easy calibration using standard weights.
- Auto braking assists in easy working with the machine.
- Supports balancing of standard steel rim and alloy wheels.
- User-friendly interface.
Specifications:
Parameter | Details |
|---|---|
Rim Width | 1.5” – 10” |
Rim Diameter | 10” – 24” |
Balancing Accuracy | 1 gram |
Max. Wheel Weight | 65 kg |
Motor Power | 0.25 kW / 0.33 HP |
Operating Voltage | 220V / 50 Hz AC |
VSP-600 – Videoscope
Features:
- View and record video with 1280 × 720 resolution @ 30 frames per second.
- Take snapshots and save images to your Launch diagnostic tool with USB ports.
- Flexible articulating probe cable allows for easy inspection and access to hard-to-reach areas.
- Ultra-small 5.5 mm camera (IP67 certified) for immersion, allows use in wet, fluid-soaked spaces.
- 5.5 mm camera head easily fits into most spark plug holes for inspection.
- 6 adjustable LED lights offer superior brightness.
- Lightweight, ergonomic design.
Specification
Parameter | Details |
|---|---|
Resolution | 1280 × 720 |
Image Type | Live Video / Still Images |
Frame Rate | 30 fps |
Light Source | 6 Adjustable LEDs |
USB Length | 2000 mm |
Working Temperature | -20°C to 70°C |
Power Supply | USB 5V |
Net Weight | 300 g |
Key Icons / Highlights:
Viewable Angle: 60°
Night Vision
Full Color
Length: 800 mm
Specification
Parameter | Details |
|---|---|
Capacity | 12800mAh / 47.36Wh |
Input Type-C | 5V / 2.4A |
Peak Current | 1500A |
Starting Current | 750A |
Battery Voltage | 12V |
Output – 1 and 2 | 5V / 2.4A |
M-KAT JS-12 – Jump Starter
Functions:
- Car Jump Starter
- Bike Jump Starter
- Powerbank
- Torch
- SOS
Features:
- Smart cable with warning beep/flash light feature.
- Compact design and lightweight, easy to carry and store.
- 12V Portable Lithium Car / Bike Battery Jump Starter with Reverse Polarity Protection.
- A Life Saver: The ultra-bright LED light has 3 light modes – Flashlight, SOS, Strobe light.
- Built-in 2.4A USB ports can power multiple devices at the same time such as smartphones, tablets, action cameras, wireless headphones, wearables and more.
- JS-12 Jump Starter Engine Capacity:
- Petrol Engine up to 4000 CC (4.0 L)
- Diesel Engine up to 2000 CC (2.0 L)
BST 360 – Bluetooth Battery Tester
Functions:
- International measurement standards supported include CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.
- Variety of battery & electrical test functions supported include ripple detection, battery test, electric current test, starter test, charging system test and voltage test.
- Real-time monitoring of battery health status included.
- Applicable battery types include 12V (Lead-acid battery, Gel battery and AGM battery).
Specification
Parameter | Details |
|---|---|
Model | BST360 |
Display | N/A |
Battery Range | 12V |
Yes | |
Work Mode | Standalone |
Weight | 250 g |
Test Functions:
- Bluetooth
- Battery Health Test
- Start System Test
- Charging Health Test
- Test Report
Compatible With:
- X-431 PAD III V3.0
- X-431 PRO SE
- X-431 PAD V V2.0
- X-431 PAD VII
- SCANPLUS X V5.0
- 919 MAX
Work Modes:
- AC Voltage
- Resistance
- DC Voltage
- Diode
M-KAT CT 100 (Circuit Tester)
Functions:
- Perform these functions: power injection measuring, ground testing, polarity checking, continuity testing, component activation, etc.
- Read the voltage, current, and resistance easily.
- Press the power switch lightly and get instant heat ground lead to energizing the electrical components, such as the cooling fan, relay, etc.
- Activate the components by using the hot wire and ground lead simultaneously.
- Determine the positive, negative, and open circuit quickly.
- Test the bad ground contacts quickly, follow and locate short circuits without wasting fuse and time.
- Test the continuity of the power switch, relay, and diode quickly.
- Protect the tool from overload through the inner circuit breaker.
- Allow you to work in dark areas by using the built-in LED light.
- 35 ft long cable for ease of wiring testing.
Specification
Parameter | Details |
|---|---|
Display | 160 × 128 TFT color display |
Operating Temperature | 0°C to 60°C |
Storage Temperature | -40°C to 70°C |
Working Voltage | 6 – 30V |
Dimension | 178 × 47 × 28 mm |
Net Weight | 0.1 kg |
M-KAT Motoplus
Functions:
- Handheld operation, convenient and flexible to use.
- Support for SD cards to store data and upgrades.
- 3.2-inch color screen, clear display.
- Dynamic data with numerical and waveform.
- Suitable for BS6 Indian vehicles.
- Tests supported: Battery Health Test, Charging Test, Starting Test.
Specification
Parameter | Details |
|---|---|
Power | DC 10–15V |
Operating Current | 250 mA |
Storage Temperature | -10°C to 85°C |
Operating Temperature | 0°C to 70°C |
Humidity | < 90% |
Upgrade Ports | USB Port |
Communication Ports | COM Port |
Functions:
- Read system information
- Read fault code
- Freeze data
- Read data stream
- Erase fault code
- ABS system test
- Battery tester (12V)
Key Functions / Icons:
- Reprogram LAUNCH Sensors – Unlimited Times
- Read & Copy & Write Sensor ID
- Diagnose Tire Pressure Sensors
X-431 TSGUN – TPMS
Features:
- Covers 98% of global vehicles with the tire pressure system.
- Diagnose tire pressure faults, including read / clear DTCs, etc.
- TPMS status is synchronously displayed on the scanner’s screen.
- Activate and match all known 315 MHz / 433 MHz sensors.
- Built-in tire pressure learning instruction makes operation easier.
- Reprogram LAUNCH sensors unlimited times by copying original sensor IDs or generating new IDs.
- Manual or OBD port TPMS sensor relearn & reprogram.
- Read tire pressure, temperature & battery status.
Specification
Parameter | Details |
|---|---|
Display | 1.77-inch color screen |
Resolution | 168 × 128 pixels |
Battery | 3000 mAh |
Input Voltage | DC 5V |
Working Current | ≤ 1A |
Working Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 60°C |
Size | 225 × 54 × 30 mm |
Weight | < 350 g |
X-431 ECU & TCU Programmer
Standalone Clone Product
- Engine & Gearbox
- Safety
- Stable Connection
- Intuitive Menu
- Works with Windows PC
Features:
- ECUs data reading & writing quickly
- Supports two methods to read various vehicle brand ECU information.
- Supports reading the chip ID and backing up the EEPROM data.
- Supports backing up FLASH data and restoring EEPROM / FLASH data.
- Integrated PROG3 and ECU & TCU adapter functions.
- Read and write EEPROM and FLASH data.
- Supports anti-theft deactivation and file verification.
- Supports Volkswagen, Audi, Porsche engine ECU data cloning.
- 1 year of free software updates.
Suitable For:
- Car
- Motorcycle
- Bicycle
- Electric Bicycle
MTI-31 – Portable Air Pump
Features:
- Corded digital tire inflator with portable handle.
- Digital gauge: stops automatically when programmed inflation is achieved.
- Built-in LED light.
- 4 units switchable (PSI, KPA, BAR, KG/CM²).
- Independent LED switch.
- Built-in cooling fan for long life cycle.
Specification
Parameter | Details |
|---|---|
Product Material | ABS & Metal |
Voltage | DC 12V |
Power | 100W |
Noise | < 85 dB from 1.5 m |
Accessories | Extra nozzle (3 pcs), Extra fuse (1 pc) |
Cylinder Diameter & Air Flow | 21 mm & 23 L/min |
Air Hose Length | 52 ± 3 cm |
Max Pressure | 150 PSI or 10.3 BAR |
Inflation Time | 5 minutes (±30 s) for car tire 195/55/R15 |
Cigarette Lighter Cord Length | 3 m |
MTI-41 – Portable Air Pump
Features:
- Corded digital tire inflator.
- Digital gauge: stops automatically when programmed inflation is achieved.
- Built-in LED light.
- 4 units switchable (PSI, KPA, BAR, KG/CM²).
- Cigarette lighter cord storage function.
- Air hose storage function.
- Accessories storage function.
- Built-in cooling fan for long life cycle.
Specification
Parameter | Details |
|---|---|
Product Material | ABS & Metal |
Voltage | DC 12V |
Power | 100W |
Noise | < 85 dB from 1.5 m |
Accessories | Extra nozzle (3 pcs), Extra fuse (1 pc) |
Cylinder Diameter & Air Flow | 21 mm & 22 L/min |
Air Hose Length | 48 ± 3 cm |
Max Pressure | 150 PSI or 10.3 BAR |
Inflation Time | 5 minutes (±30 s) for car tire 195/55/R15 |
Cigarette Lighter Cord Length | 3 m |
Suitable For:
- Car
- Motorcycle
- Bicycle
- Electric Bicycle
Suitable For:
- Car
- Motorcycle
- Bicycle
- Electric Bicycle
MTI-54 – Portable Air Pump
Features:
- Cordless & corded dual-use tire inflator (rechargeable).
- (When the battery is depleted, it can be powered directly with the cigarette lighter cord.)
- Power bank function.
- Dual-screen digital display (shows target pressure directly).
- Digital gauge: stops automatically when target pressure is achieved.
- Built-in LED light (three modes: Normal, SOS, Flash).
- 4 units switchable (PSI, KPA, BAR, KG/CM²).
- 5 default modes (Car, Motorcycle, Bicycle, Sports Ball, Manual) for quick selection.
- Manual operation mode with memory function.
- Built-in cooling fan for long life cycle.
Specification
Product Material | ABS & Metal |
Voltage | DC 11.1V from battery or DC 12V from cigarette lighter cord |
Noise | < 85 dB from 1.5 m |
Battery Capacity | 22.2 Wh (2000 mAh × 3) |
Charging Time | Around 4–5 hours |
Accessories | Extra nozzle (4 pcs), Extra fuse (1 pc), USB Type-C charging cord (1 pc), Cigarette lighter cord (1 pc) |
Cylinder Diameter & Air Flow | 19 mm & 19 L/min |
MTI-72 – Portable Air Pump
Features:
- Corded digital tire inflator with portable handle.
- Upgraded digital display with large numeric screen.
- Digital gauge: stops automatically when programmed inflation is achieved.
- Built-in LED light.
- 4 units switchable (PSI, KPA, BAR, KG/CM²).
- Independent LED button.
- Cigarette lighter cord storage function.
- Air hose storage function.
Specification
Parameter | Details |
|---|---|
Product Material | ABS & Metal |
Voltage | DC 12V |
Power | 100 W |
Noise | < 85 dB from 1.5 m |
Accessories | Extra nozzle (3 pcs), Extra fuse (1 pc) |
Cylinder Diameter & Air Flow | 22 mm & 25 L/min |
Air Hose Length | 54 ± 3 cm |
Max Pressure | 150 PSI or 10.3 BAR |
Inflation Time | 4.5 minutes (±30 s) for car tire 195/55/R15 |
Cigarette Lighter Cord Length | 3 m |
Suitable For:
- Car
- Motorcycle
- Bicycle
- Electric Bicycle
Suitable For:
- Car
- Motorcycle
- Bicycle
- Electric Bicycle
MTI-72 – Portable Air Pump
Features:
- Corded digital tire inflator with portable handle.
- Upgraded digital display with large numeric screen.
- Digital gauge: stops automatically when programmed inflation is achieved.
- Built-in LED light.
- 4 units switchable (PSI, KPA, BAR, KG/CM²).
- Independent LED button.
- Cigarette lighter cord storage function.
- Air hose storage function.
Specification
Parameter | Details |
|---|---|
Product Material | ABS & Metal |
Voltage | DC 12V |
Power | 100 W |
Noise | < 85 dB from 1.5 m |
Accessories | Extra nozzle (3 pcs), Extra fuse (1 pc) |
Cylinder Diameter & Air Flow | 22 mm & 25 L/min |
Air Hose Length | 54 ± 3 cm |
Max Pressure | 150 PSI or 10.3 BAR |
Inflation Time | 4.5 minutes (±30 s) for car tire 195/55/R15 |
Cigarette Lighter Cord Length | 3 m |
